S1612H 贴片石英晶体

S1612H 贴片石英晶体

A small and thin surface-mount type crystal uniIdeal for Wearable device and Short-range Wireless module.

Ultracompact and thin (Typ. 1.6×1.2×0.4mm)

Lead-free. Meets the requirements for re-flow profiling using lead-free solder

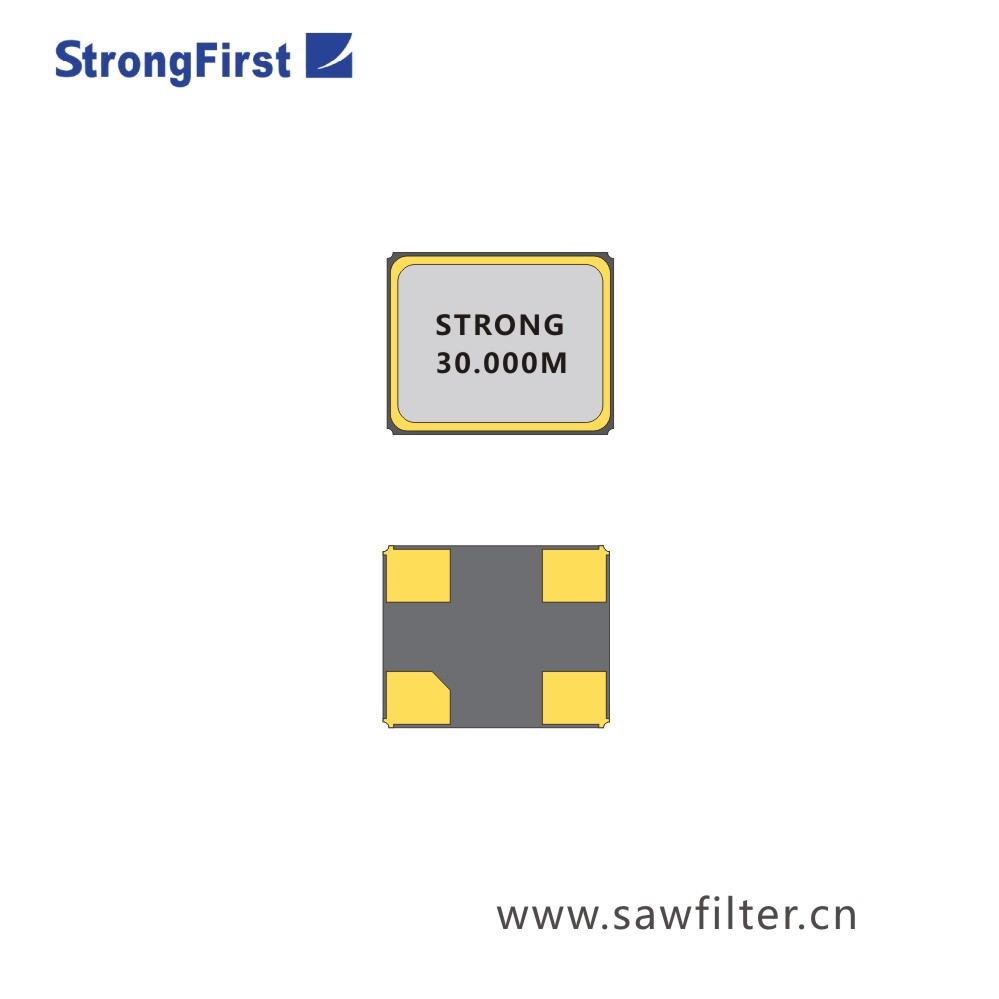

Type SMD Crystal UNITS 1.6*1.2*0.4mm
Freq. range 24.0 ~ 60.0MHz
Vibration mode AT cut , Fundamental
Frequency tolerance(at 25 °C) -/+10ppm , -/+30ppm , or specify
Equivalent series resistance See table No.1
Frequency stability over
operating temperature range
-/+10ppm, -/+30ppm , or specify
Operating temperature range -10 ~ +60℃ , or specify
Drive Level 50uW Max.
Shunt capacitance 3.0pF Max.
Load capacitance 8pF, 10pF, or specify
Aging -/+2ppm/year , -/+5ppm/year
Min. Packing 3,000pcs/Reel

Equivalent series resistance(ESR) Table No.1
Frequency Mode ESR
24.0~40.0 MHz Fundamental 150 ohms Max.
41.0~60.0 MHz Fundamental 100 ohms Max.
